SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Channel: 4

Choice: yes

Frequency: 433 MHz

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Support APP: Yes

Use: Universal

Wireless Communication: RF

Feature:

Easy to use, the 4-channel remote control system lets you take control of your devices, car, home and garage.

This is not a complete list!If your remote control uses the 433 MHZ frequency, it will work with the remote duplicator (note: variable code remotes will not work).

The original remote control IC model is 2262 2260 1527 2240 and compatible IC.

The battery used in the product is 27 to 12 V. Replace the battery when the remote control distance is insufficient.

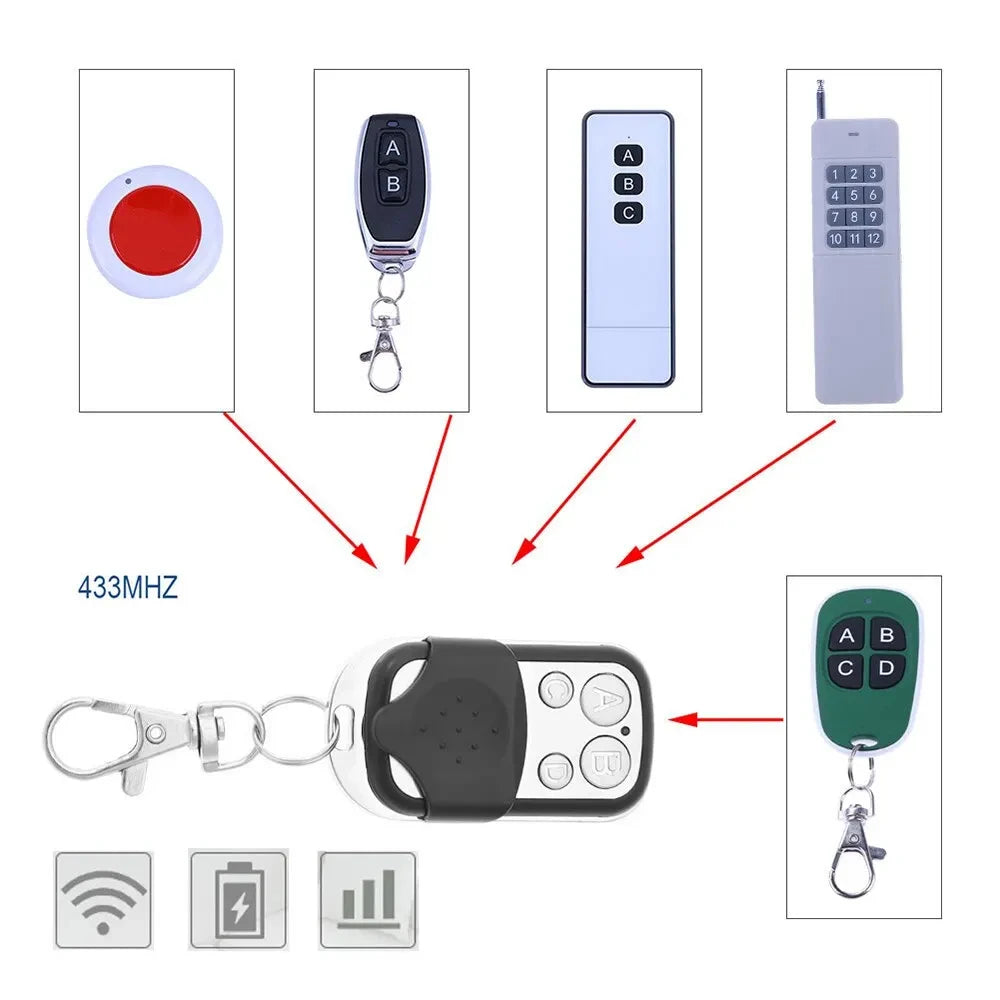

Clone up to 4 remote signals from 4 different remotes.

Description:

With this remote control, you can control all 433 MHz fixed code keys.

Some remote controls that use this frequency are listed below.

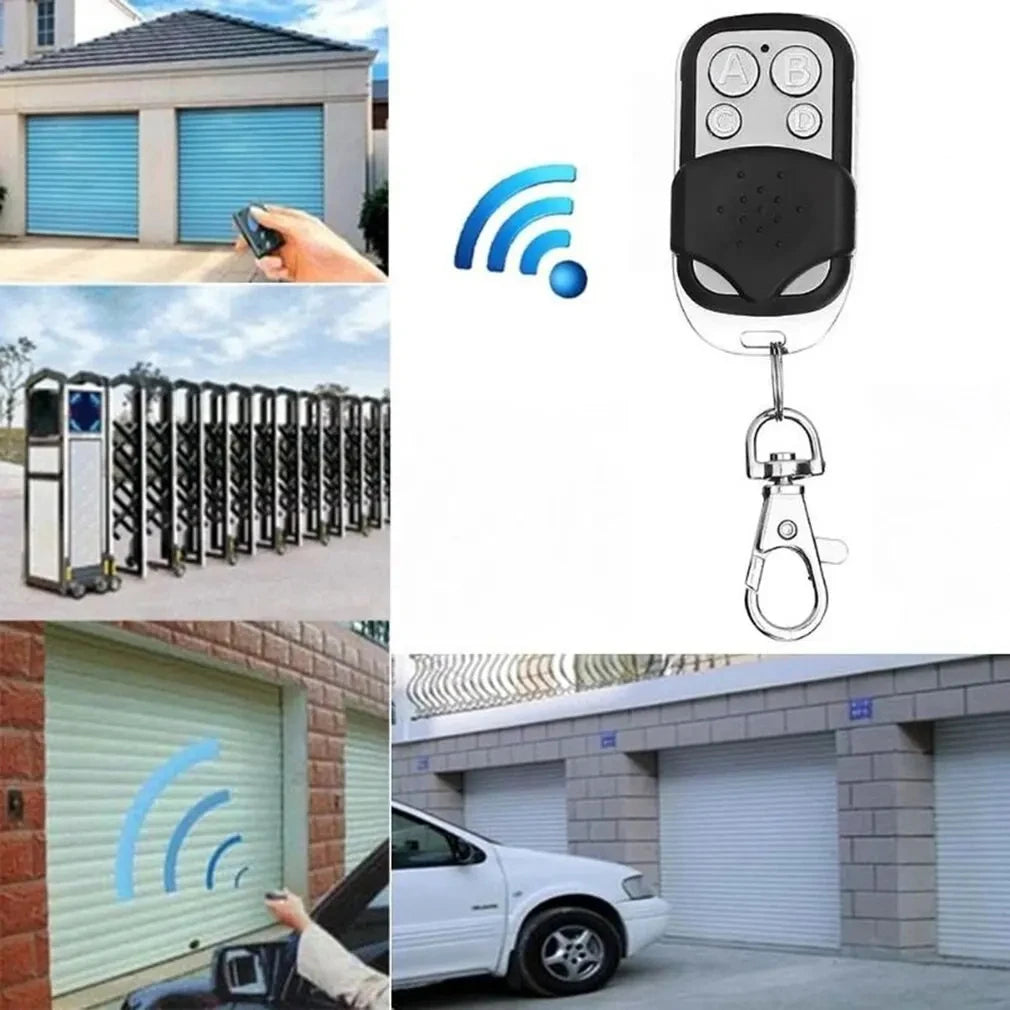

4 Channel RF Wireless Remote Control Duplicator for Automotive, Garage Doors, Gate Doors, Alarm Systems, etc.

This is a fixed frequency (433 mhz) remote cloner for copying common fixed code and learning remotes.

Specifications:

Package weight: 33 g

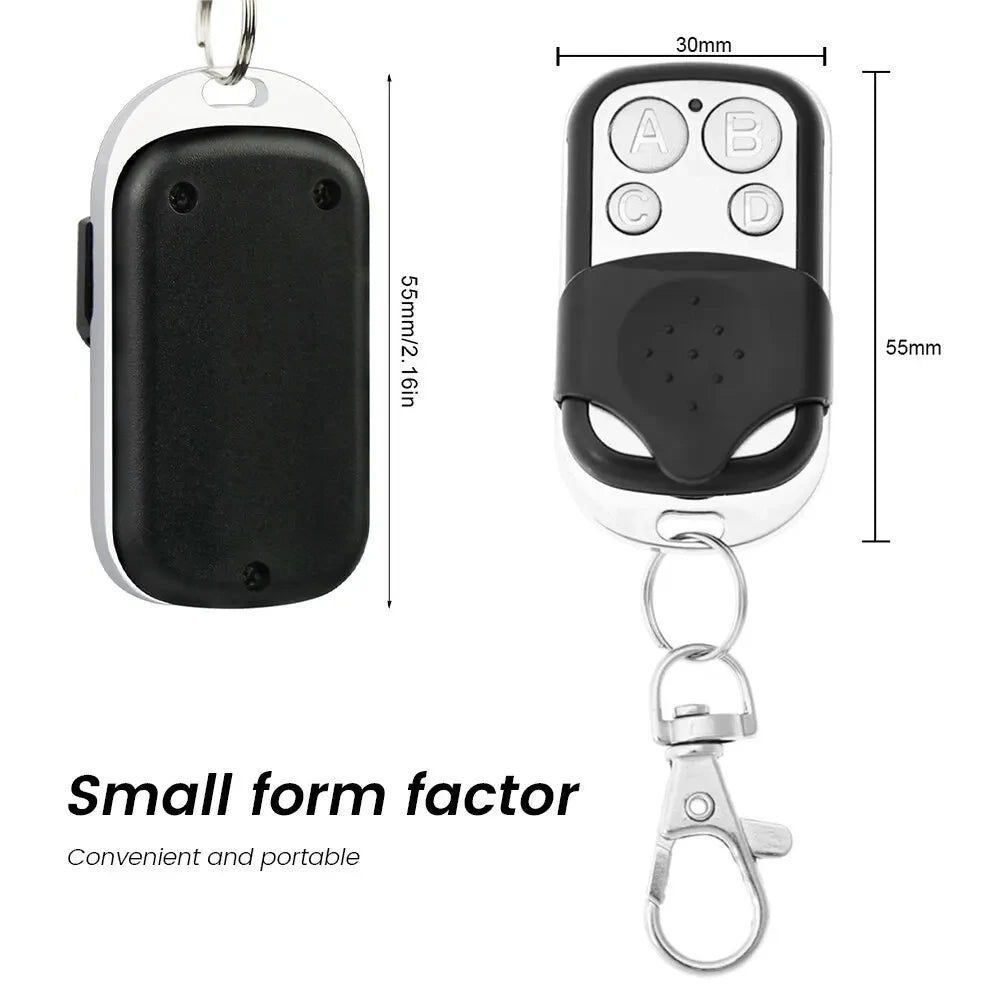

Size: 55mm x 28mm x 14mm

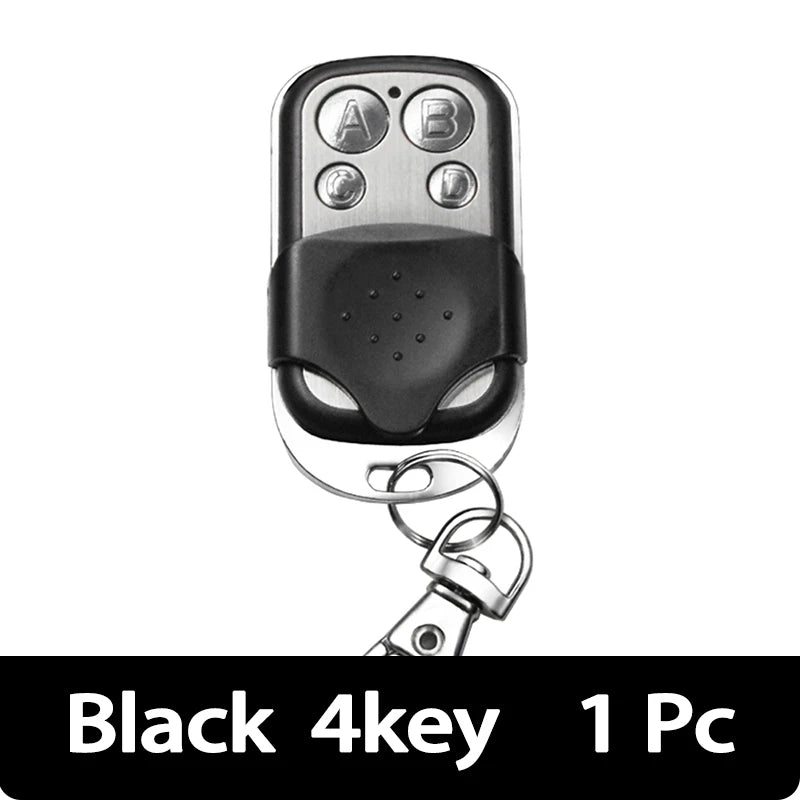

Color: black

Operating frequency: 433MHz

Powered by battery 27A 12V (included)

Channels: 4

Distance: Up to 100 meters

Application: Duplicate your existing remote controllers

Application Example 1: Centralized Vehicle Locking Systems

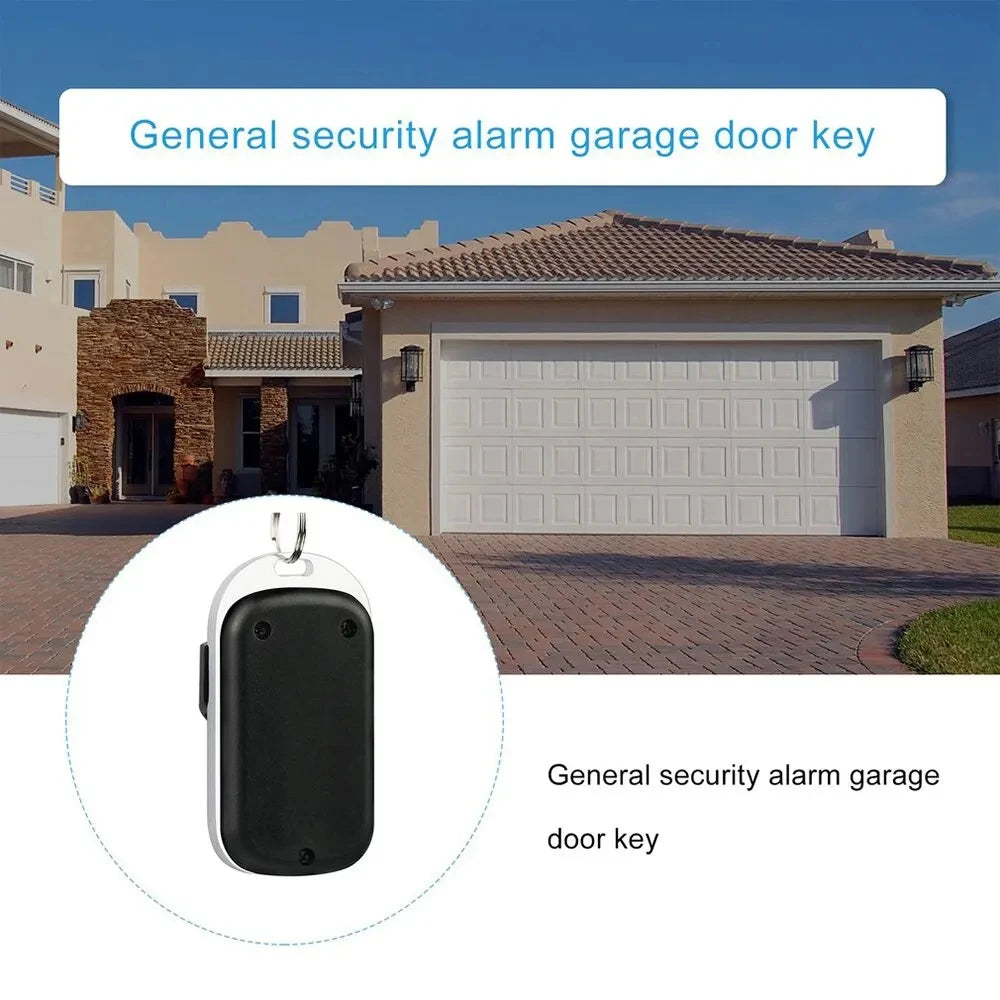

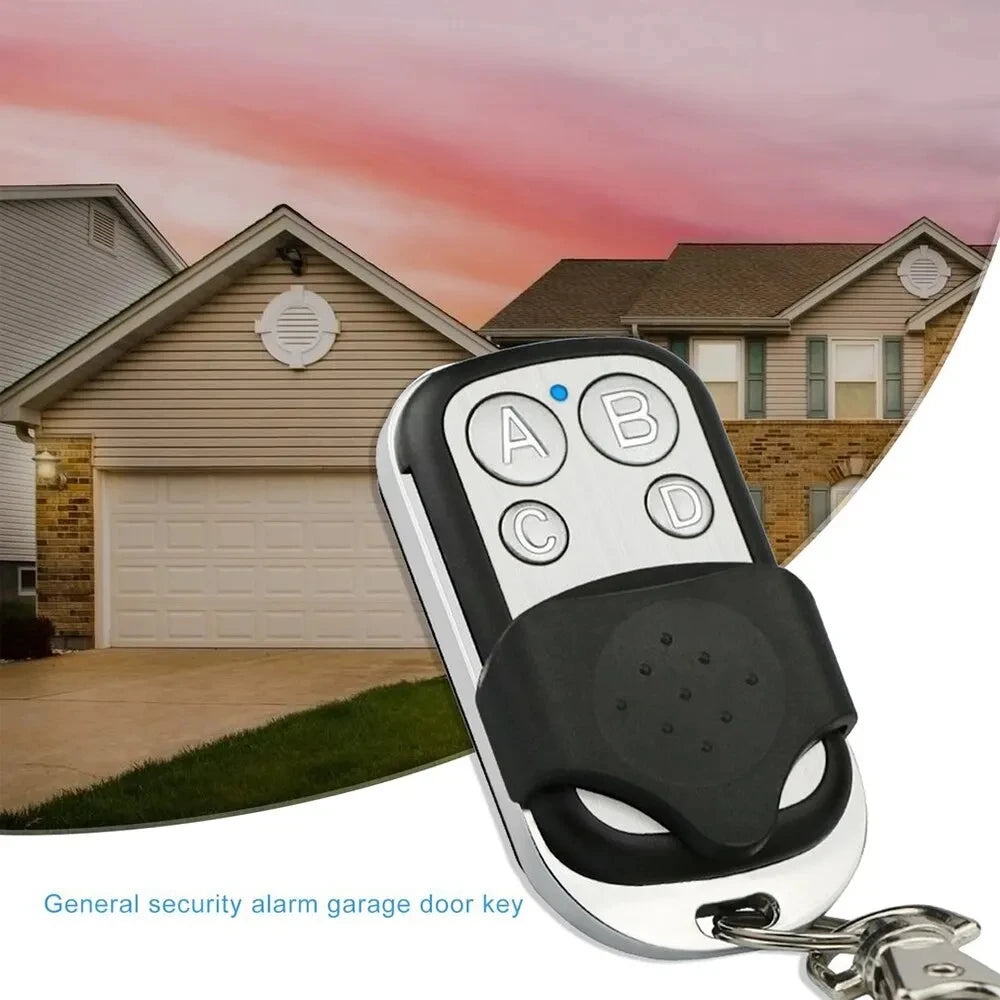

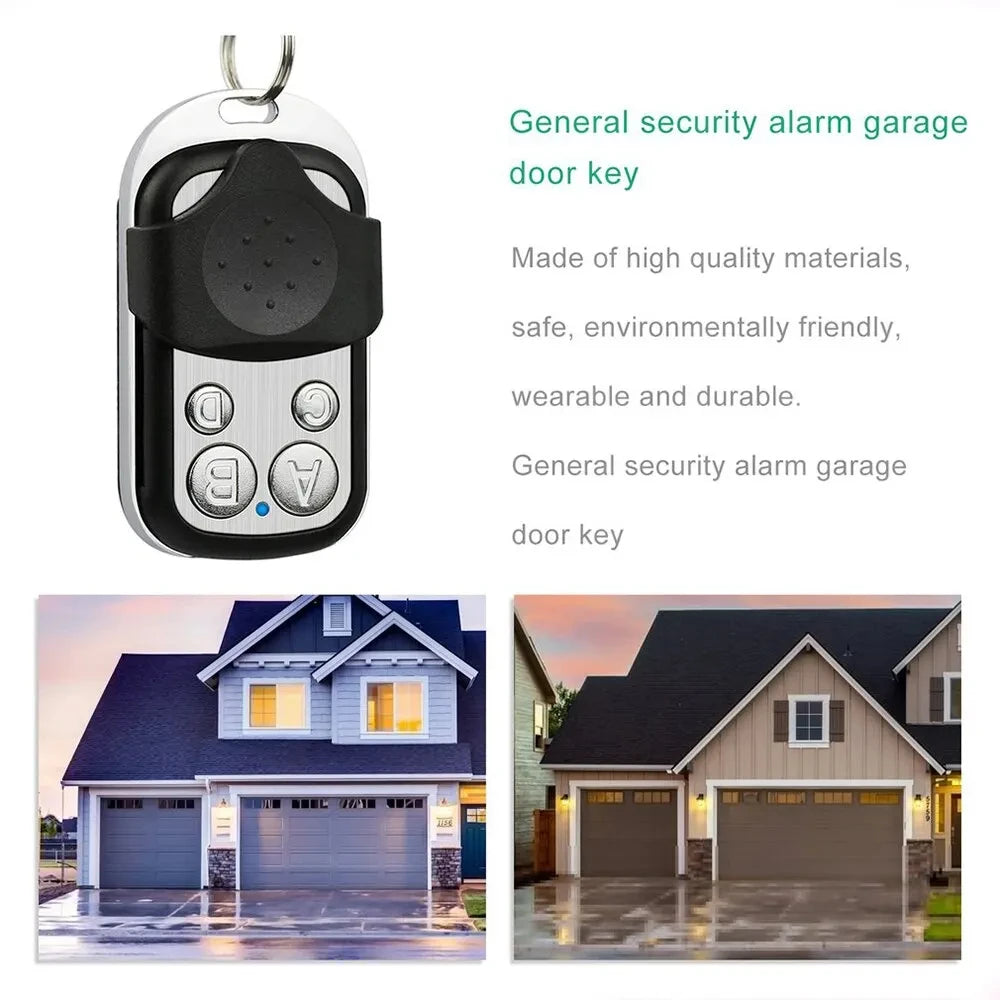

Application Example 2: Garage Door Access Control System

Application Example 3: Electronic Door Access Control System

Application Example 4: Control of Electrical Appliances

Application example 5: Automotive sliding roof control

Application example 6: Control of heating systems

Application Example 7: Light Switch

The package includes:

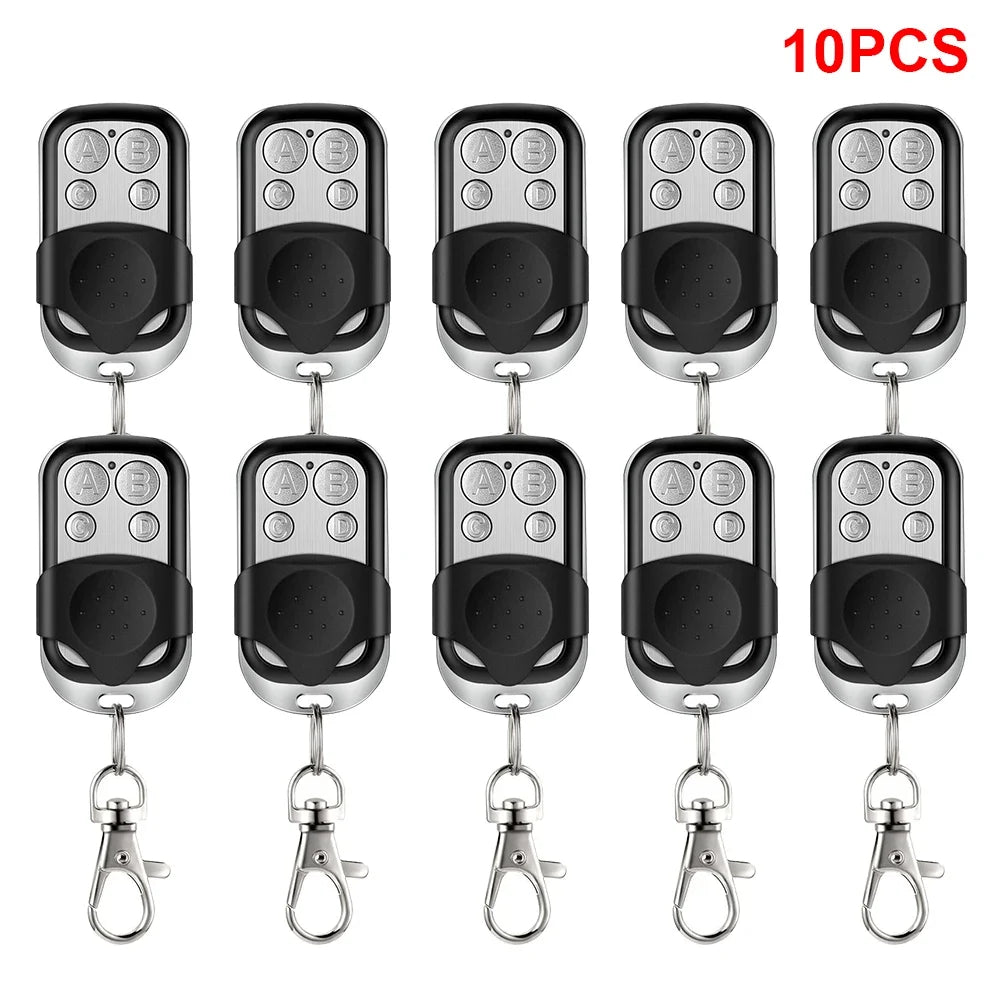

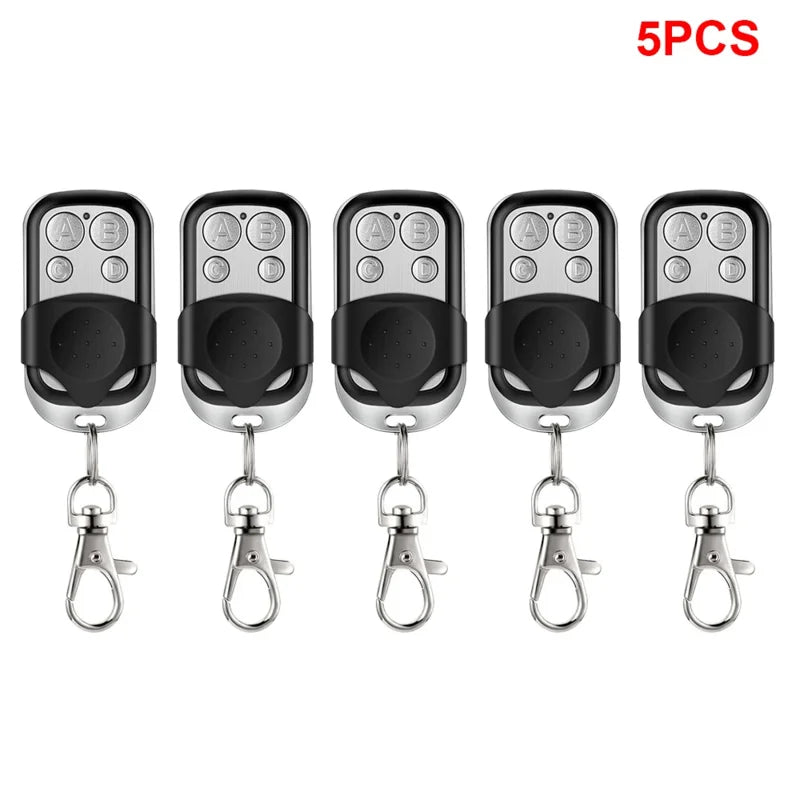

1/5/10 PiecesRemote Control

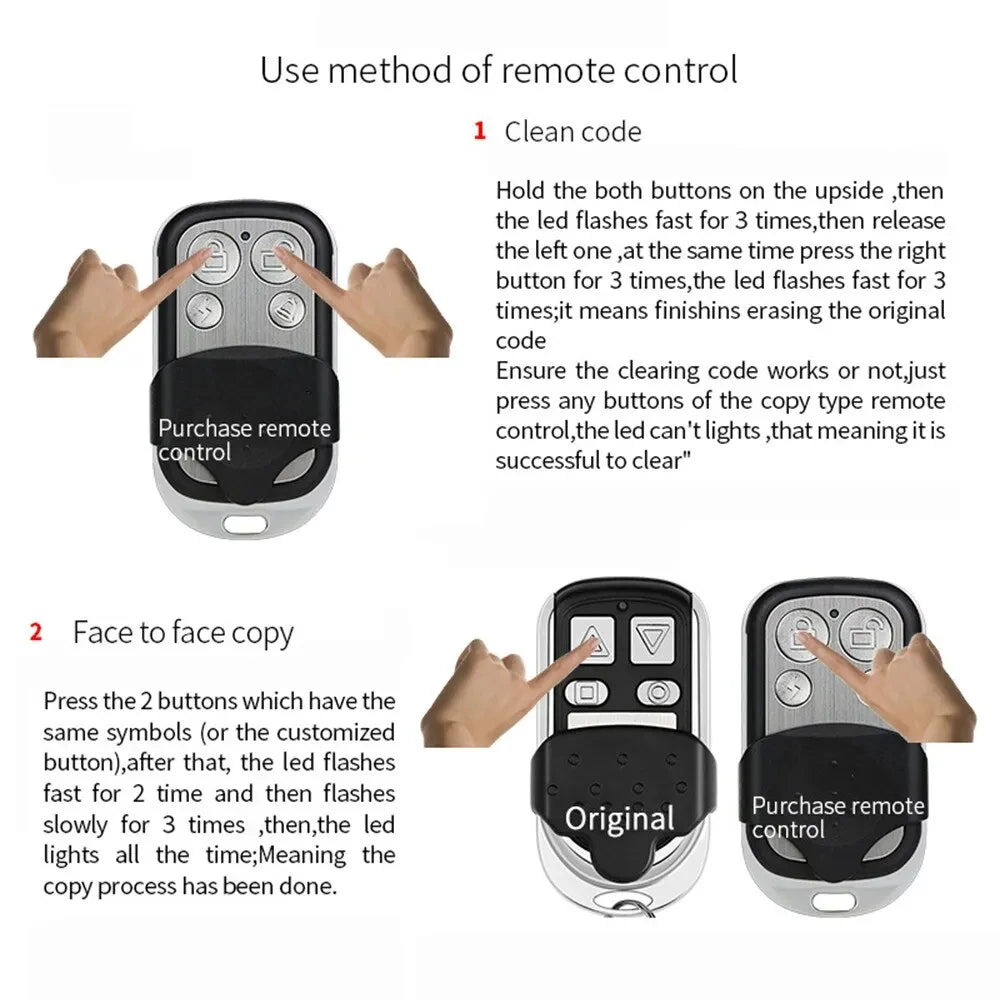

Copy method:

Restart before copying: Press two keys on the copy remote at the same time until the LED flashes, indicating that the restart was performed correctly.After resetting, press the remote key and the LED will turn off.

Copy: Place the product correctly before copying.Place the original remote and photo remote on the desktop.Use your right hand to press the copy remote until the LED is on and off, indicating that it is entering the copy state.Use your left hand to press the original remote key.The quick click of the remote control LED indicates successful copy.The copy method is the same as for multiple keys.

NOTE:

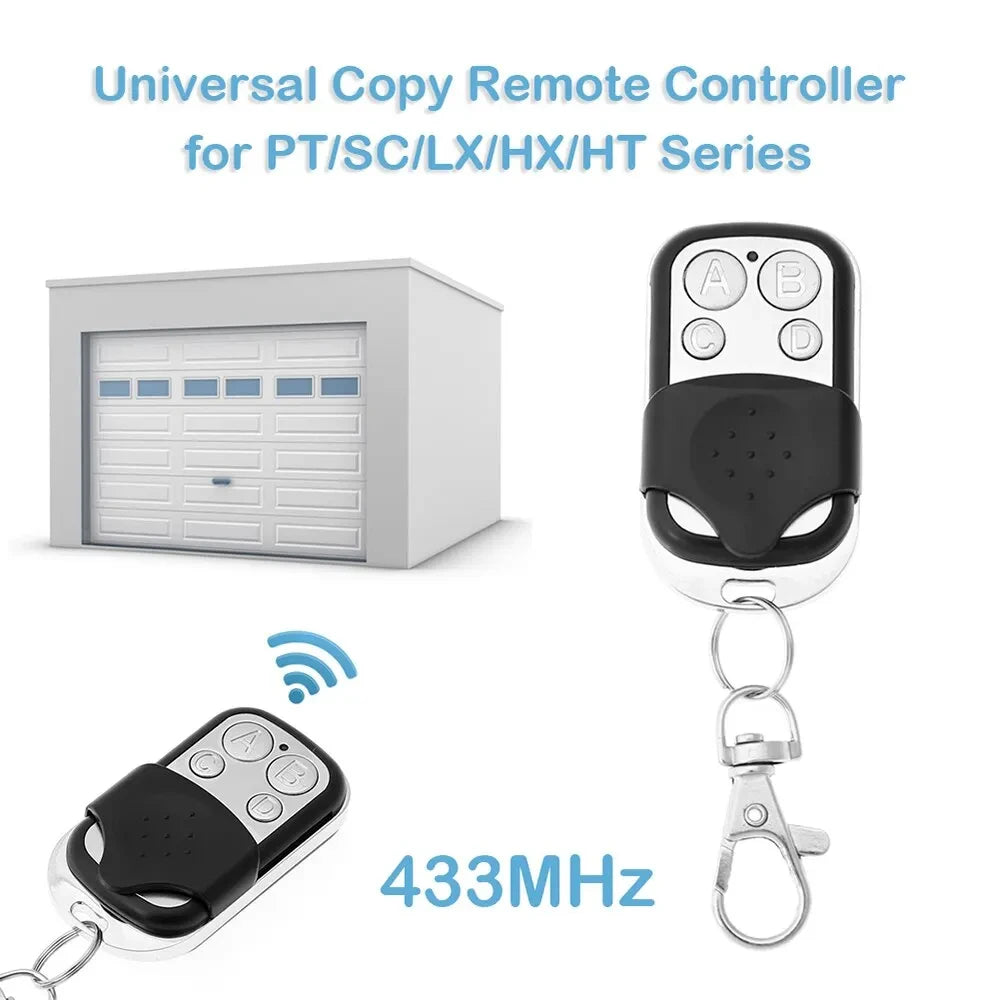

This product can copy the remote control with the following internal chip: PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527.

If the IC chips do not match, will not be copied, check the chip model before buying.
